We stock a huge amount of NBR Buna O-rings specific to Japanese Motorcycles. Below you will find items specific to Honda's Goldwing series with KeiHin carburetors from 1975 and later including air cut-off valve, U-rings, O-rings, float needles, fuel passage plugs, accelerator kits, jets and much more. You will also find our additional complete selection of NBR Buna O-Rings for Mikuni sold separately. Scroll down to see our selection.


Goldwing Manifold O-Ring




Intake Manifold
O-Rings

  • This is the o-ring that seals the intake manifold to the head
  • NBR Buna Rubber for the best fuel sealing quality.
  • Sold Each

GL1000 '75-'79
GL1100 '80-'83
40mm x 2.6mm


Quantity

4610- 1.50 Each



GL1200 '84-'87
35.5mm x 2.6mm


Quantity

4611- 1.50 Each

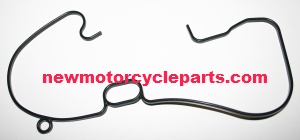

Plenum Seal 16075-463-004




Carb plenum
Center Seal
GL1100 '80-'83

  • This is the seal that seals the two halves of the carb sets air box plenum
  • Factory Honda Part Made in Japan
  • Sold Each


GL1100 '80-'83
Goldwings


Quantity

16075-463-004 - 39.95


Fuel Air Adjustment Screw O-Rings


4601 GL1000 Fuel Air Adjustment O-Ring
4601


4619 GL1100 Fuel Air Adjustment O-Ring
4619

  • This is the o-ring that seals the fuel air adjustment screw on the carb
  • NBR Buna Rubber for the best fuel sealing quality.
  • Sold Each


GL1000 '75-'79
2.8mm x 1.9mm


Quantity

4601- 0.80 Each



GL1100 '80-'83
2.8mm x 1.2mm
Metal washer for this sold below


Quantity

4619- 0.80 Each



Fuel Air Adjustment Washer




Fuel-Air Screw
Washer

  • This is the tiny little washer that protects the carb screw 0-ring and base from the adjustment spring
  • Steel washer


GL1100 GL1200 GL1500
Washer - 3mm x 5mm x 1mm


Quantity

0055- 0.60 Each


Fuel Crossover O-Rings


Small Fuel Cross-over O-Ring
4617


Large Fuel Cross-over O-Ring
4622

  • This is the o-ring that seals the fuel crossover pipes between the carbs
  • The larger is for the main fuel crossover and the other smaller is for the accellerator crossover
  • NBR Buna Rubber for the best fuel sealing quality.
  • Sold Each


GL1100 '80-'83
Small - 2.8mm x 1.3mm


Quantity

4617- 0.80 Each



GL1100 '80-'83
Large - 5.8mm x 1.9mm


Quantity

4622- 0.80 Each


Fuel Crossover O-Rings between carb and plenum


4mmx6.3mmx2mm U ring
4644


6.5mmx9.5mmx3mm U ring
4645

  • This is the o-ring that seals the fuel crossover pipes between the center plenum and the carbs
  • All GL1100's use two of each size listed here for a complete set of 4 carbs.
  • The larger is for the main fuel crossover and the other smaller is for the accelerator crossover
  • NBR Buna Rubber for the best fuel sealing quality.
  • Sold Each


GL1100 '80-'83
Small - 4mm x 6.3mm x 2mm


Quantity

4644- 1.49 Each



GL1100 '80-'83
Large - 6.5mm x 9.5mm x 3mm


Quantity

4645- 1.59 Each



Float Valve Seat O-Ring GL1000




Float Needle-Seat
O-Ring

  • This is the o-ring that seals the float needle seat inside the carb
  • NBR Buna Rubber for the best fuel sealing quality.
  • Sold Each (dime not included :)


GL1000 '75-'79
Small - 5.7mm x 1.3mm


Quantity

4602- 1.00 Each



Bowl Drain Screw GL1000 O-Ring




Bowl Drain Screw
O-Ring

  • This is the o-ring that seals the float bowl drain screw on the bottom of the carb
  • NBR Buna Rubber for the best fuel sealing quality.
  • Sold Each (dime not included :)


GL1000 '75-'79
Small - 4.47mm x 1.78mm


Quantity

4603- 1.25 Each


Primary and Secondary Jet O-Rings


Primary Jet O-Ring GL1000
4604


Secondary Jet O-Ring GL1000
4609

  • These are the o-rings that seal the fuel jets inside the carb
  • The larger is for the secondary jet and the other smaller is for the prinary jet
  • NBR Buna Rubber for the best fuel sealing quality.
  • Sold Each (dime not included :)


GL1000 '75-'79
Primary - 3.2mm x 1.1mm


Quantity

4604- 1.00 Each



GL1000 '75-'79
Secondary - 4.2mm x 1.1mm


Quantity

4609- 1.00 Each



Float needle GL1000




GL1000 GL1100 GL1200
Float Needles

  • These are the float needles that shut fuel off to the float bowl when they fill up
  • This is a critical part to any carb rebuild
  • NBR Buna Rubber for the best fuel sealing quality.
  • Sold Each (dime not included :)
  • Made in Japan

Float needle GL1000
GL1000 '75-'79



Quantity

8954- 6.95 Each


Kei-Hin Style Float Needle 8953
GL1100 '80-'83



Quantity

8953- 7.95 Each


Kei-Hin Style Float Needle 8953
GL1200 '84-'87



Quantity

8953- 7.95 Each


Kei-Hin Style Float Needle 4769
GL1500 '88-'00



Quantity

4769- 8.95 Each


GL1000 '75-'79


Float Bowl Gasket GL1000





Float Bowl
Gasket

  • GL1000 Goldwings '75-'79
  • Made in Japan


BG-2695

Quantity

4.50


GL1100 '80-'83 and other VB Style Keihin Carbs


Float Bowl Gasket GL1100





Float Bowl
Gasket

  • CM250C
  • CM400/450T '78-'81
  • CB450SC
  • CX500 C, D '78-'82
  • FT500 '82-'83
  • GL500
  • GL650 '83
  • Made in Japan
  • CX650C '83
  • CB650 '81-'82
  • CB750 L, F, C, K, SC '79-'83
  • CB900 C, F
  • CBX
  • CB1000C/1100F
  • GL1100
  • Made in Japan


BG-2631

Quantity

6.50



Fuel Passage Plug GL1000




Fuel Passage
Plug

  • GL1000 Goldwings '75-'79
  • Seals the cavity where the idle jet screws in and is a critical part to the way the idle circuit works
  • Sold each


FPP-4688

Quantity

2.49




Air Cut-Off Valve GL1000
Example Picture




Air Cut-Off
Valve Kit

  • GL1000 Goldwings '75-'79
  • Anti backfire device that mounts to the carb plenum, this bike uses only one for the entire carb set
  • Sold each


AIRCUT-2792

Quantity

24.95




Air Cut-Off Valve GL1100




Air Cut-Off
Valve Kit

  • GL1100 Goldwings '80-'83
  • Anti backfire device that mounts to the carb side, this bike uses one PER carburetor
  • Sold each


AIRCUT-2795

Quantity

24.95



2mmx3mmx5.2mm U ring




Air Cut-Off Valve
U-Ring only

  • GL1000 Goldwings '75-'97 use one total
  • GL1100 Goldwings '80-'83 use four total
  • Small U-Ring that sits next to the air cut-off valve to seal air passage when cover is mounted.
  • Sold each


URING-4643
3mm x 5.2mm x 2mm

Quantity

1.49




Zink Oxide Carb Screws




Zink Oxide
Carb Bowl Screws

  • All years of GL's with carbs
  • Zink Oxide plated, Phillips head 4mm x 16mm Bowl Screws
  • Sold each


SCREW-7823

Quantity

0.35 Each



Oval Style U-Ring




U-Ring
Seal

  • U-Rings are specific to various Kei-Hin carb applications. They have a flat side and a round side which makes a cross section of the seal look like a "U".
  • This style is oval shaped
  • Sold each, (Dime not included:)


URING-4642

Quantity

1.09 Each



2mmx3mmx5.2mm U ring




U-Ring
Seal

  • U-Rings are specific to various Kei-Hin carb applications. They have a flat side and a round side which makes a cross section of the seal look like a "U".
  • This style is round and 3mm x 5.2mm x 2mm
  • Sold each, (Dime not included:)


URING-4643

Quantity

1.49 Each



4mmx6.3mmx2mm U ring




U-Ring
Seal

  • U-Rings are specific to various Kei-Hin carb applications. They have a flat side and a round side which makes a cross section of the seal look like a "U".
  • This style is round and 4mm x 6.3mm x 2mm
  • Sold each, (Dime not included:)


URING-4644

Quantity

1.49 Each



6.5mmx9.5mmx3mm U ring




U-Ring
Seal

  • U-Rings are specific to various Kei-Hin carb applications. They have a flat side and a round side which makes a cross section of the seal look like a "U".
  • This style is round and 6.5mm x 9.5mm x 3mm
  • Sold each, (Dime not included:)


URING-4645

Quantity

1.59 Each


*

Various O-Rings Specific to Mikuni Carbs

  • The o-rings below are all Mikuni sizes, but we added the dimensions so you can determine if they may work for other uses on different brand carbs
  • Made of NBR Buna Rubber for specific fuel related uses
  • Sizes are given in I.D. (Inside diameter) x Thickness
  • All parts sold each
  • Sorry..dimes not included :) They are shown for size reference.

4630 O-Ring
OR-4630
(4.0mm x 1.0 mm)





Quantity

0.50 Each


4631 O-Ring
OR-4631
(7.5mm x 1.5 mm)





Quantity

0.50 Each


4632 O-Ring
OR-4632
(2.65mm x 1.15 mm)





Quantity

0.50 Each


4602 O-Ring
OR-4602
(5.7mm x 1.3 mm)





Quantity

1.00 Each


4634 O-Ring
OR-4634
(3.7mm x 1.8 mm)





Quantity

0.50 Each


4635 O-Ring
OR-4635
(4.8mm x 1.9 mm)





Quantity

0.50 Each


4636 O-Ring
OR-4636
(2.4mm x 1.6 mm)






Quantity

0.50 Each


4637 O-Ring
OR-4637
(10.2mm x 1.4 mm)





Quantity

0.60 Each


4638 O-Ring
OR-4638
(6.6mm x 1.5 mm)





Quantity

0.50 Each


4639 O-Ring
OR-4639
(2.7mm x 2.0 mm)





Quantity

0.50 Each
